[Rice Lake] Checkweigher CW-90

Description

Rice Lake’s CW-90 checkweigher is designed to help speed up your weighing process and reduce production downtime, two critical factors to your company’s bottom line. Ease of use, real-time data collection, and rugged stainless steel construction make the CW-90 the equipment of choice for operators, quality control and maintenance departments. The CW-90 is competitively priced for all light industrial settings.

Features

Membrane keypad consisting of zero, units, print, tare, over, under, ID, target, 0-9, clear, decimal, enter, menu, power

304 stainless steel, IP66 rated indicator

PreVent™ breather vent

Storage for up to 50 IDs

Unit of measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)

High-intensity LED display

Battery backed time and date

Two full duplex RS-232 serial ports

Configurable print formats

Audit trail tracking

Optional communications: Ethernet, USB or fiber optic

Four configurable Digital I/O

Reflash memory to upgrade firmware

Model

Material

IP Protection

Accuracy class

Minimum LC verification

The Checkweigher of Choice

Rice Lake’s CW-90 checkweigher is designed to help speed up your weighing process and reduce production downtime, two critical factors to your company’s bottom line. Ease of use, real-time data collection, and rugged stainless steel construction make the CW-90 the equipment of choice for operators, quality control and maintenance departments. The CW-90 is competitively priced for all light industrial settings.

Easy to Configure

The configuration menu of the CW-90 is accessible through the front keypad, eliminating the need to open the back of the indicator and expose the unit to moisture or contaminants. Access to these keypad controls can be limited to meet the operator’s needs. The CW-90 will store detailed information for up to 50 separate IDs, allowing for easy recall of previously saved information. An adjustable contrast display is visible in any environment.

Simple to Maintain

The CW-90 has kept things simple to meet the needs of today’s lean manufacturers. Use this checkweigher by easily watching the over/under lights. Program the unit with specified weight limits and a red light will display an underweight condition, yellow for over, and green when a target weight is reached. Rice Lake’s CW-90 will help error-proof your production process and achieve your productivity goals.

CW-90 Over/Under Checkweigher

Membrane keypad consisting of zero, units, print, tare, over, under, ID, target, 0-9, clear, decimal, enter, menu, power
304 stainless steel, IP66 rated indicator
PreVent™ breather vent
Storage for up to 50 IDs
Unit of measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)
High-intensity LED display
Battery backed time and date
Two full duplex RS-232 serial ports
Configurable print formats
Audit trail tracking
Optional communications: Ethernet, USB or fiber optic
Four configurable Digital I/O
Reflash memory to upgrade firmware
Scale:
Aluminum, environmentally sealed load cell
304 stainless steel
Meets HACCP requirements
Five-point overload protection

CW-90 Over/Under Checkweigher Specifications

Power - AC:
Line voltages:
115/230 VAC
Frequency:
50/60 Hz

Power Consumption:
1.5 A at 115 VAC (8 W)
0.75 A at 230 VAC (8 W)

Measurement Rate:
960,480, 240, 120, 60, 30, 15, 7.5 per second

System Linearity:
±0.01% full scale

Digital I/O:
Four channels on CPU board

Circuit Protection:
RFI, EMI, ESD protection

Display:
Large 0.8 in, 14 segments, six-digit high-intensity red
LED display

Status Annunciators:
Designators for %, kg, gm, lb, oz, center of zero, G/B,
N, T, PT, neg, motion

Operating Temperature:
Legal: -10º C to 40º C (14º F to 104º F)

Rating/Material:
IP66, stainless steel

Display Resolution:
100,000 graduations maximum

Load Cell:
Aluminum, environmentally sealed

Warranty:
Two-year limited warranty

Approvals:
Indicator:
NTEP CC 08-092, Class III/IIIL 10,000 d
Measurement Canada AM-5710, Class III 10,000 d
OIML R76/2006-GBI-10.02
TC11569
T10807
UL and CUL listed
CE marked
Scale:
NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082, Class III 5,000 d
NSF

Product

Product

The Checkweigher of Choice

Easy to Configure

Simple to Maintain

CW-90 Over/Under Checkweigher

CW-90 Over/Under Checkweigher Specifications

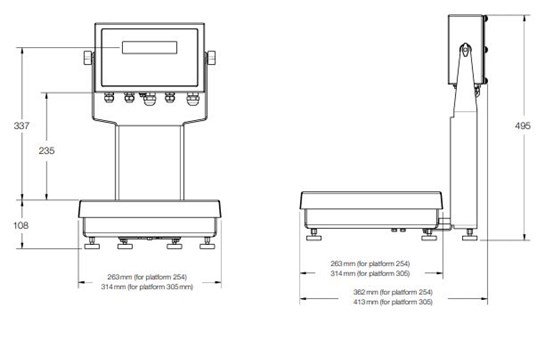

CW-90 Over/Under Checkweigher Dimensions
