[Rice Lake] Checkweigher CW-90X

Description

For heavy washdown environments and HACCP requirements, choose Rice Lake's CW-90X checkweigher. The CW-90X features the toughest keypad available. This rigid piezo device is made to withstand sharp knife-point contacts, and is resistant to most contaminants and liquids.

Features

Piezo keypad consisting of zero, units, print, tare, over, under, ID, target, enter, menu, power

304 stainless steel, IP69K rated indicator

PreVent™ breather vent

Storage for up to 50 IDs

Unit of measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)

High-intensity LED display

Battery backed time and date

Two full-duplex RS-232 serial ports

Configurable print formats

Audit trail tracking

Optional communications: Ethernet, USB or fiber optic

Four configurable digital I/O

Reflash memory to upgrade firmware

Model

Material

IP Protection

Accuracy class

Minimum LC verification

Performance Under Extreme Pressure

For heavy washdown environments and HACCP requirements, choose Rice Lake's CW-90X checkweigher. The CW-90X features the toughest keypad available. This rigid piezo device is made to withstand sharp knife-point contacts, and is resistant to most contaminants and liquids.
The configuration menu of the CW-90X is accessible through the front keypad, eliminating the need to open the back of the indicator and expose the unit to moisture or contaminants. Access to these keypad controls can be limited to meet the operator's needs. The CW-90X will store detailed information for up to 50 separate IDs (expandable with WeighVault), allowing for easy recall of previously saved information. An adjustable contrast display is visible in any environment.

CW-90X Over/Under Checkweigher

Piezo keypad consisting of zero, units, print, tare, over, under, ID, target, enter, menu, power
304 stainless steel, IP69K rated indicator
PreVent™ breather vent
Storage for up to 50 IDs
Unit of measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)
High-intensity LED display
Battery backed time and date
Two full-duplex RS-232 serial ports
Configurable print formats
Audit trail tracking
Optional communications: Ethernet, USB or fiber optic
Four configurable digital I/O
Reflash memory to upgrade firmware
Scale
IP69K, stainless steel hermetically sealed load cell
304 stainless steel
Meets HACCP requirements
Five-point overload protection

CW-90X Over/Under Checkweigher Specifications

POWER AC:
Line voltages: 115/230 VAC
Frequency: 50/60 Hz
Fused at 2.5 A

POWER CONSUMPTION:
1.5 A at 115 VAC (8W), 0.75 A at 230 VAC (8W)

EXCITATION VOLTAGE:
+5VDC 8 x 350 Ω or 16 x 700 Ω load cells

ANALOG SIGNAL INPUT RANGE:
-0.5 mV/V + 4.5 mV/V

ANALOG SIGNAL SENSITIVITY:
0.3 μV/graduation minimum, 1.5 μV/graduation recommended

MEASUREMENT RATE:
960, 480, 240, 120, 60, 30, 15, 7.5 per second

SYSTEM LINEARITY:
+/-0.01% full scale

DIGITAL I/O:
4 channels on CPU board

CIRCUIT PROTECTION:
RFI, EMI, EFT, ESD and surge protection

DISPLAY:
Large 2 cm, 14-segment, six digit high-intensity red LED display with three color over/under bar graph

STATUS ANNUNCIATORS:
Designators for %, kg, gm, lb, oz, center of zero, Gross/Brutto, N, T, PT, neg, motion

OPERATING TEMPERATURE:
Legal: -10º C to 40º C

RATING MATERIAL:
IP69K, stainless steel

DISPLAY RESOLUTION:
100,000 graduations maximum

LOAD CELL:
IP69K, stainless steel, hermetically sealed

WARRANTY:
Three-year limited warranty

APPROVALS:
NTEP CC 08-092, Class III/IIIL 10,000d
Measurement Canada AM-5710
OIML R76/2006-GBI-10.02
TC11569
T10807
UL & CUL listed
CE marked

Product

Product

Performance Under Extreme Pressure

CW-90X Over/Under Checkweigher

CW-90X Over/Under Checkweigher Specifications

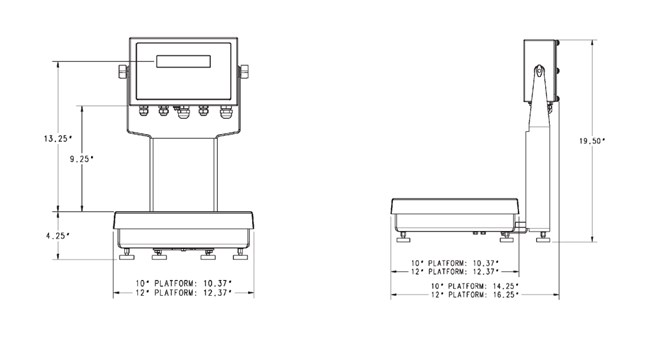

CW-90X Over/Under Checkweigher Dimensions
